1966 Progressive Refinements

Chassis Number Range: 346 000 001 through 346 316 238
Annual Production Total (estimated): 5947
Mechanical Specifications: 1593cc 54hp dual Solex 32 PDSIT carburetor, 7.2:1 compression ratio with 87mph top speed and 0-62mph in XX seconds, 6 Volt, front disk & rear drum brakes, manual 4-speed all-synchro transmission
Easiest Way to Identify a 1966: From the outside: VW 1600 script on the left rear panel & round-slotted beauty rings.
From the inside: Painted dash panel with chromed fresh-air knobs, gauges have silver knobs & white needles, half-moon horn bar, chromed knobs on quarter windows & visor clips, vanity mirror on right visor, air pressure sticker on front hood, gray-black seat backrest knob with chromed cap, & non-locking front seat backrests.
All 1966 models had: Dual-carb 1600cc engine, half-moon horn bar, black 4-lug rims with round-slotted beauty rings, ivory knobs (fresh-air, quarter windows, sunvisor clips), & ribbed flat license plate light lenses.
Color Combinations: Monotone was the standard paint scheme but two-tone could be special-ordered.
Seats were leatherette with color-matched cloth center sections or a lined color-matched leatherette.
Interior panels were solid monotone (one color), see colors in "Interior Panel Chart" section.

ARCONA WHITE

LOTUS WHITE

MANILA YELLOW

SEA SAND

BERMUDA

SEA BLUE

ROULETTE GREEN

HENNA RED

CHERRY RED

BLACK
Ambassadors of the 1966 Model Year:

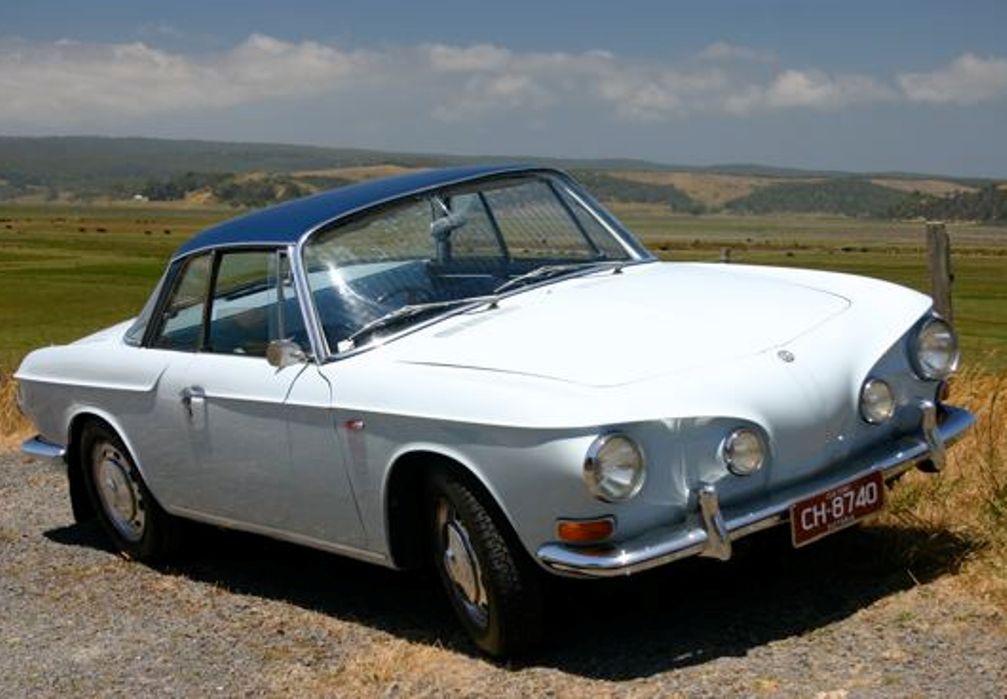

Above: Bermuda & Cobalt RHD Coupe (#346 025 097) [James Kramer, Gold Coast, Queensland, Australia]: Low-mileage original unrestored

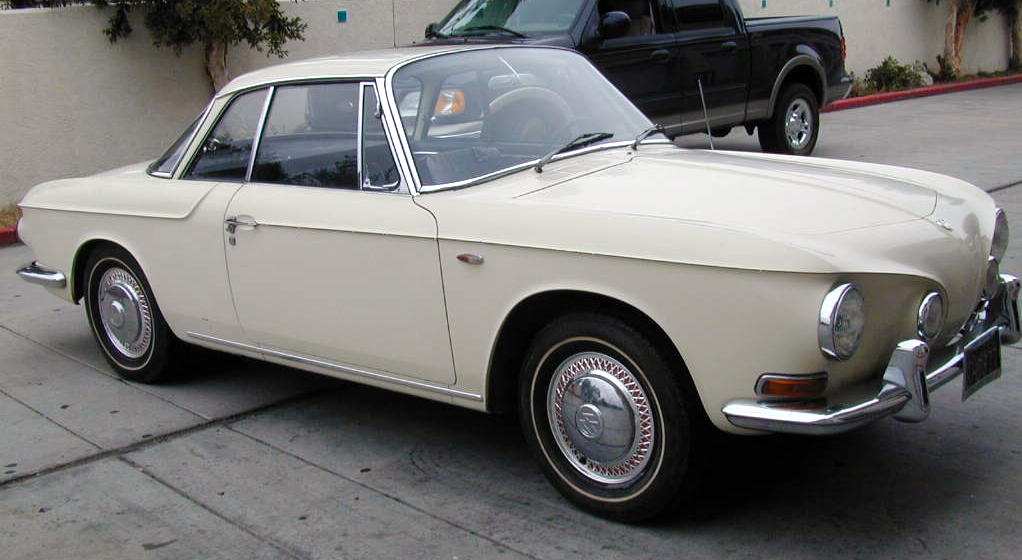

Above: Lotus White Coupe (#346 068 100) [Everett Barnes, Phoenix, Arizona USA]: 55K-miles 6th-owner original unrestored

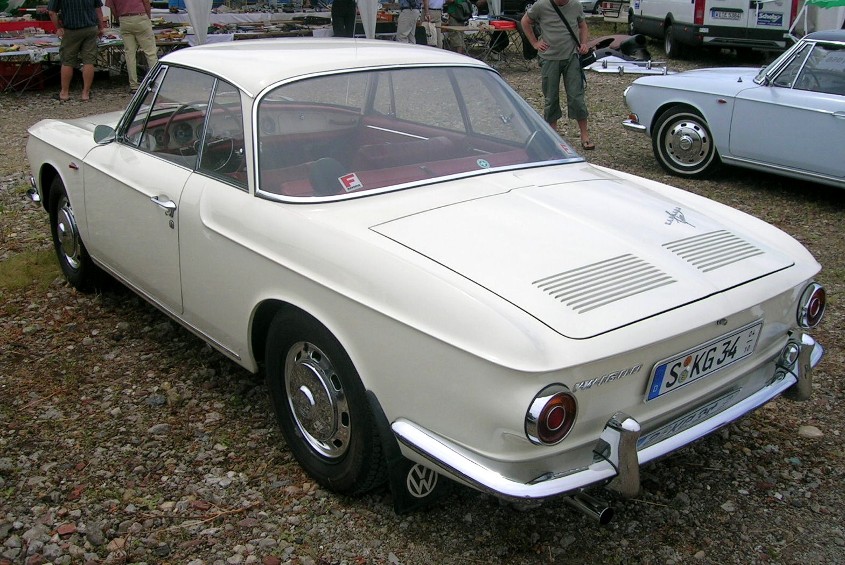

Above: Lotus White Coupe (#346 278 858) [Michael Neumann, Stuttgart, Germany]: Low-mileage with rare Pigalle interior
