Authenticity: Bumper Guards & License Lights

There are two different styles of bumper guards: pointed & rounded.

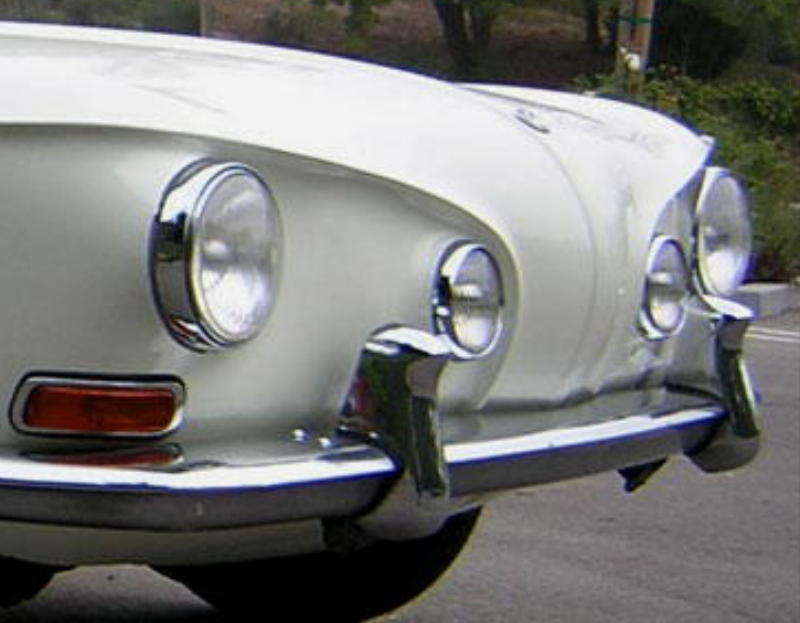

Early "Pointed" Guards
1962-65

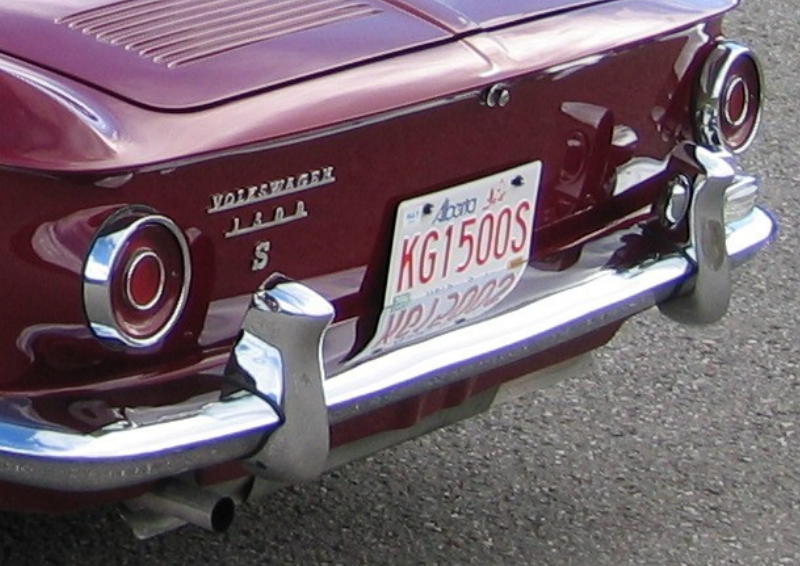

Early "Pointed" Guards
1962-65

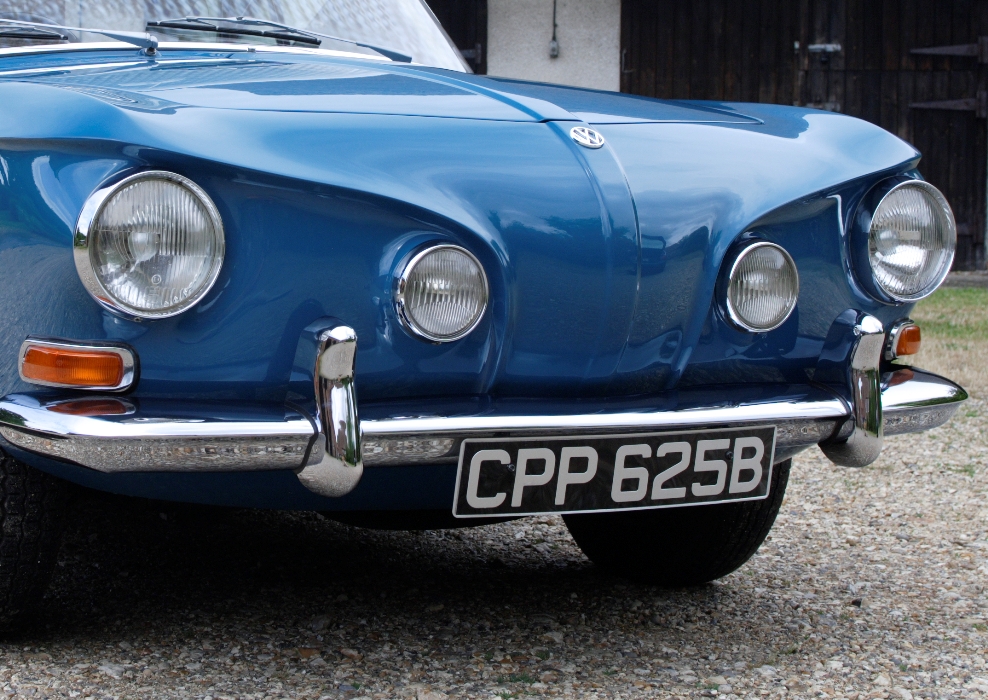

Late "Rounded" Guards
1966-69

The "pointed" guards are made of pot-metal (easily broken & difficult to rechrome) and have the mounting stud welded into the guard permanently. The "rounded" guards are made of pressed steel (stronger & easily rechromed) and have a threaded plate welded into the guard permanently to accept a separate long bolt.

Availability: the "rounded" guards are much easier to find NOS than the "pointed" guards. The "pointed" style is rarely seen and usually commands higher prices. Prices are typically $40-50 each for NOS ones. The T34 has four unique guards since the rear guards have holes for the license plate lights.

There are three different styles of license lights: logo, smooth, & ribbed.

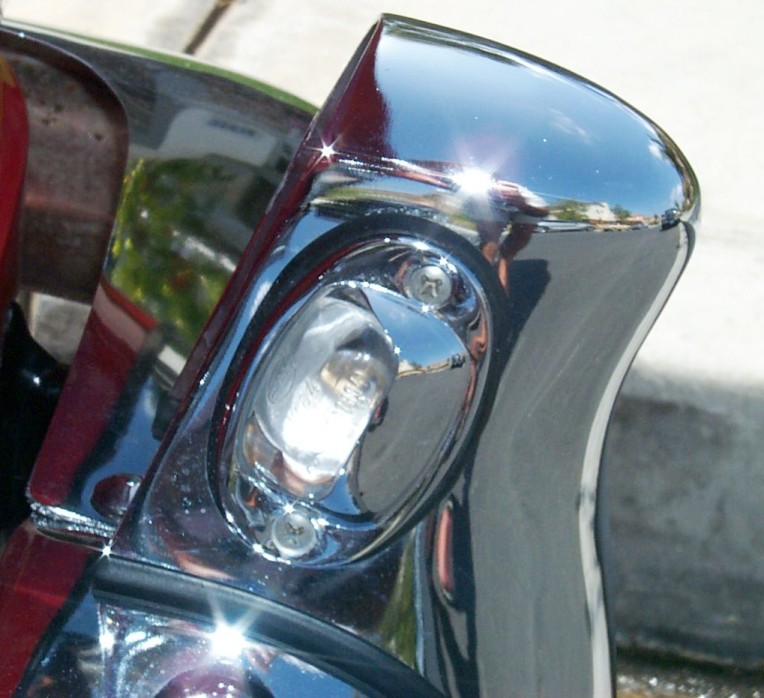

"Logo" Style
Only on earliest-1962 models

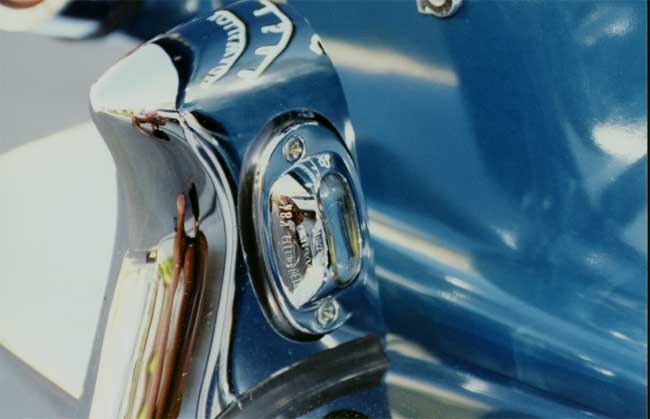

"Smooth" Style
1962-65

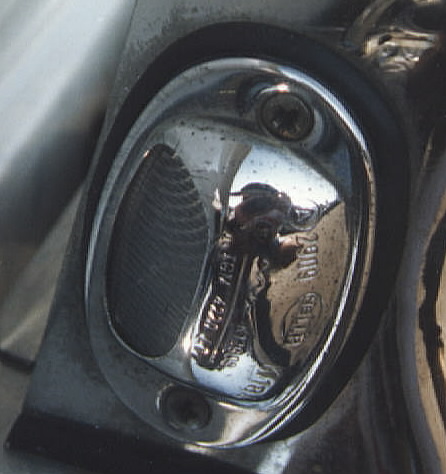

"Ribbed" Style
1966-69

The "wide" style are rarely seen and have the Hella logo & text printed on the lens. The "smooth" style have a symmetrical smooth lens as the logo & text is printed into the chrome trim instead. The "ribbed" style have a flat design with thin horizontal lines as part of the lens. Logo & text are also printed onto the chrome trim.
