Restoration: Interior Panel Color Chart

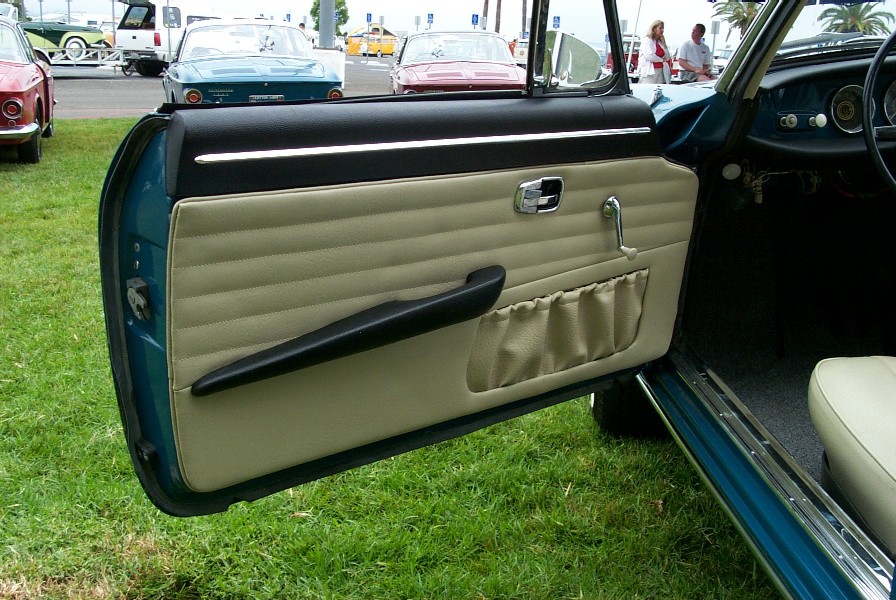

There are few sources for stock replacement T34 interior panels. The biggest problem with replacement interior panels is that the heat-seamed lines are very difficult to reproduce, and most vendors simply sew the lines which results in a less-than-original look.

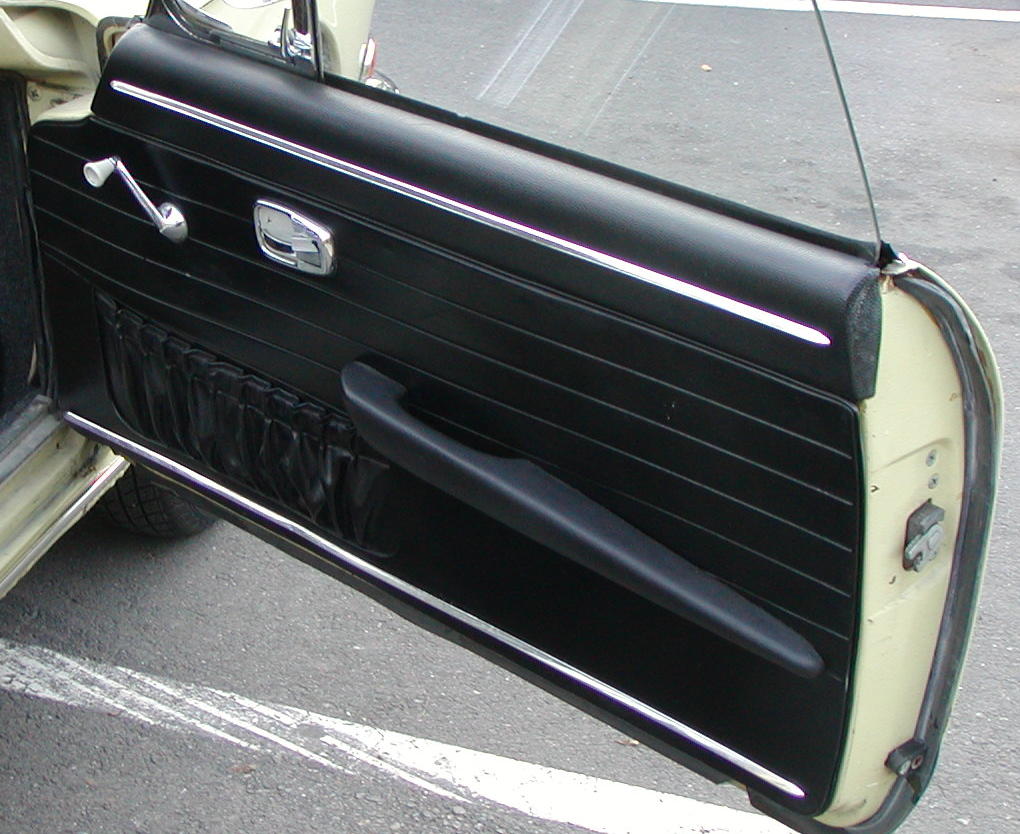

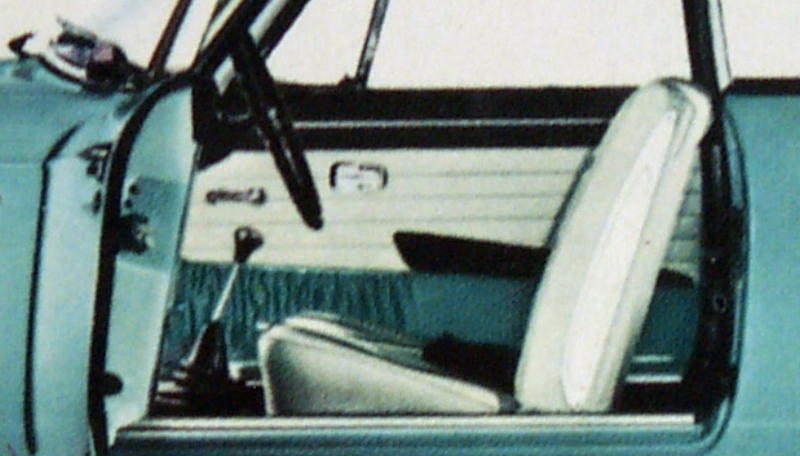

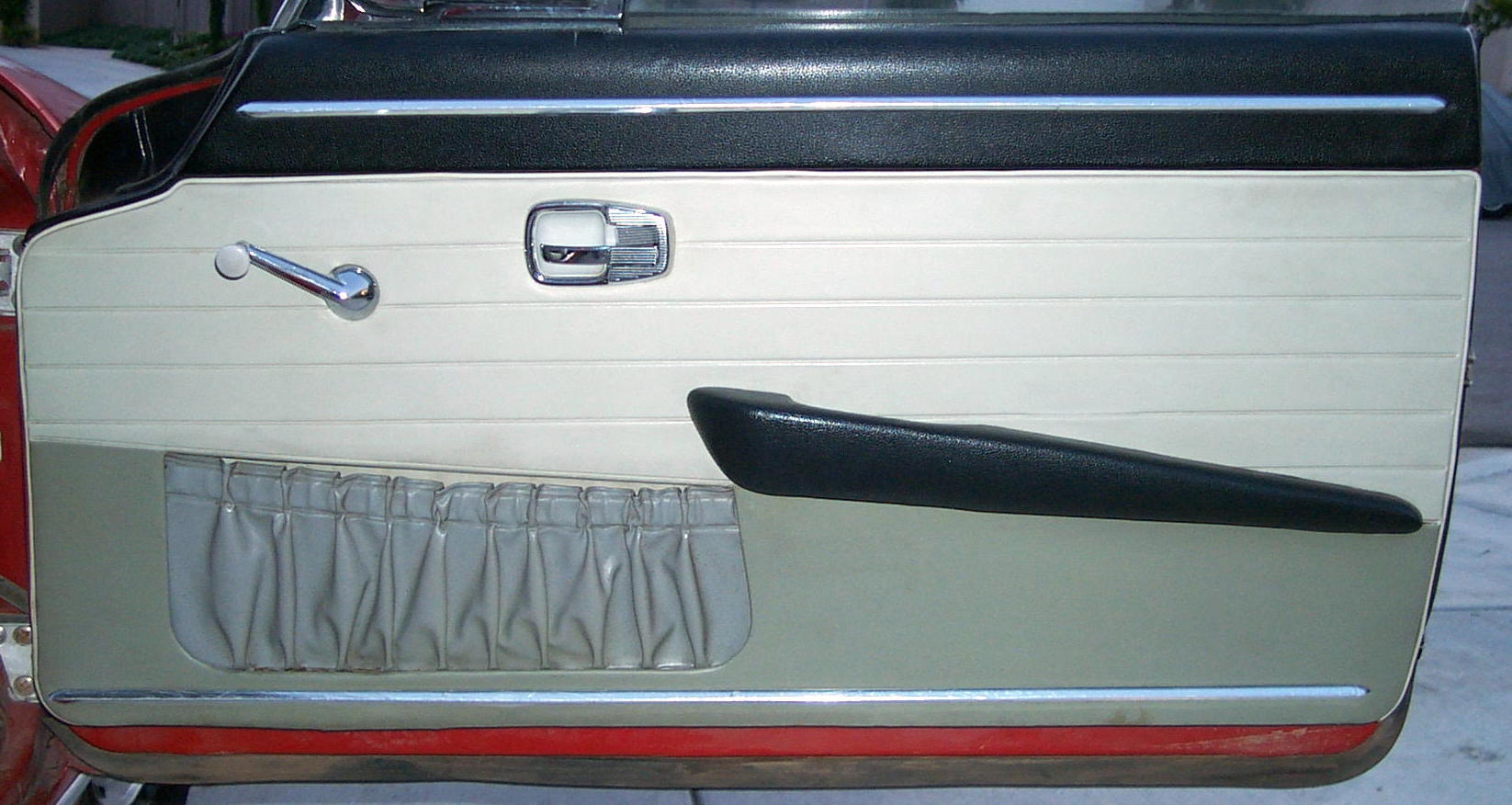

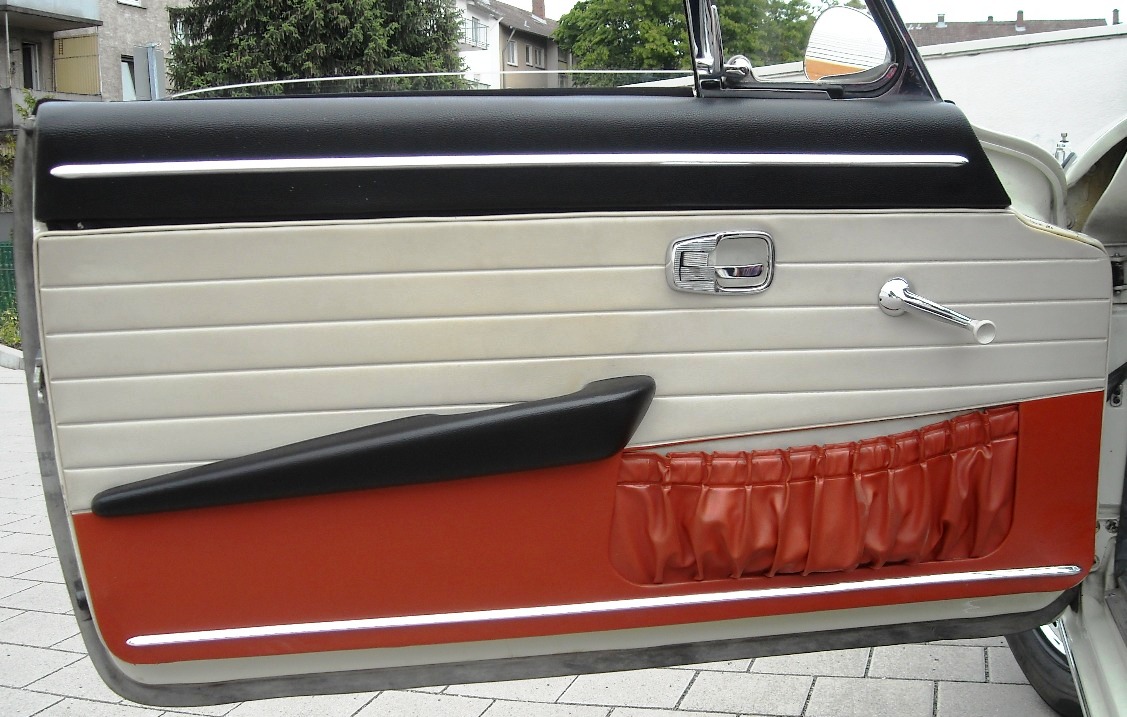

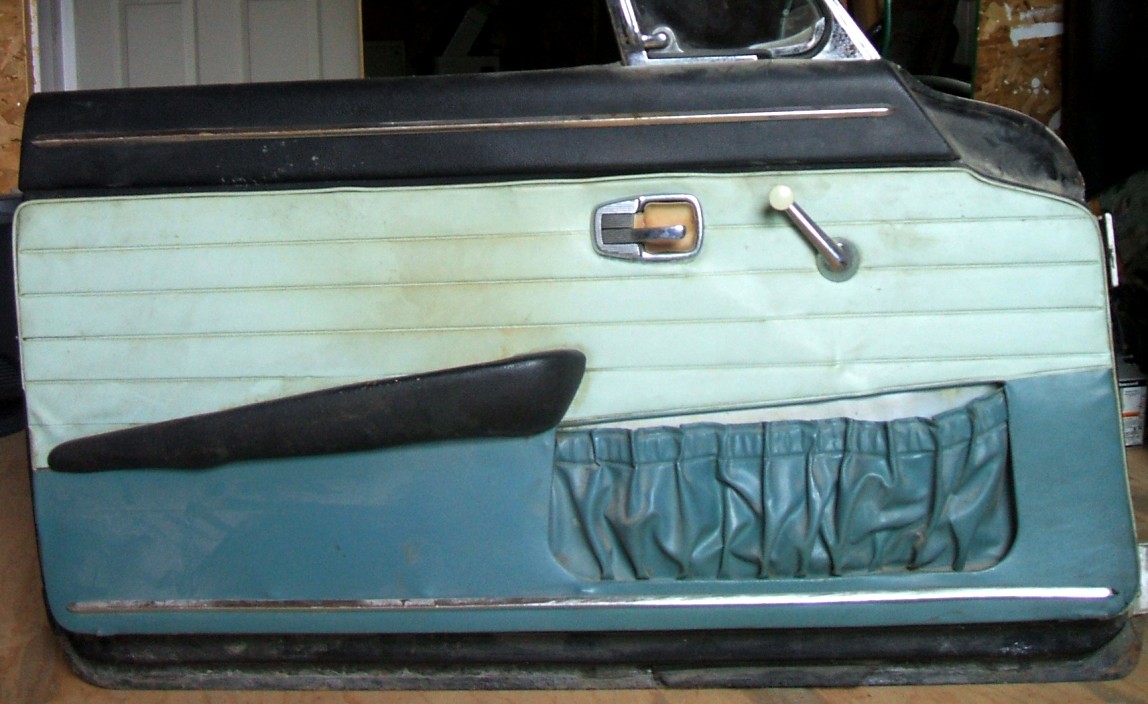

Most 1962-64 T34s had two-toned panels and the lower panel was either cloth or vinyl.

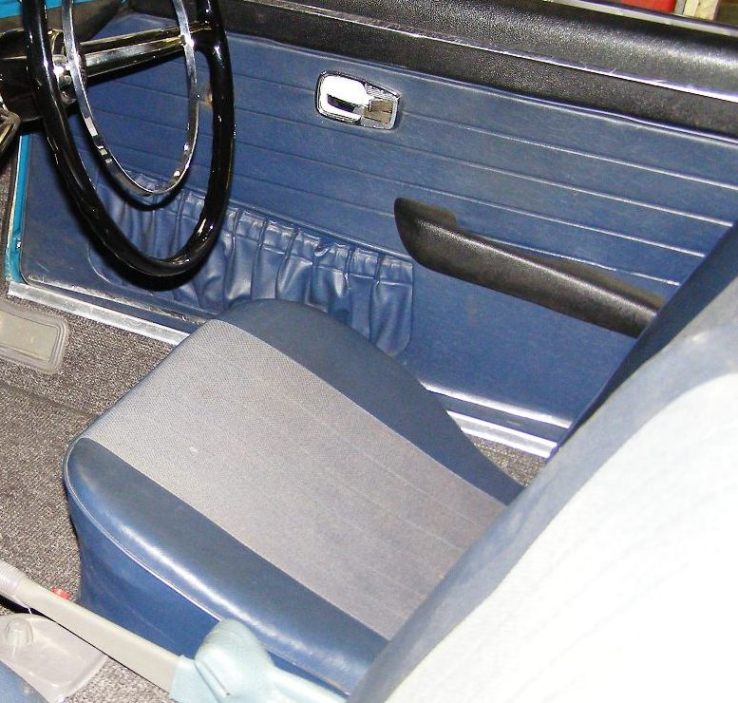

All 1965-69 T34s were fitted with monotone panels.


1962-64
TWO-TONE DOOR PANELS

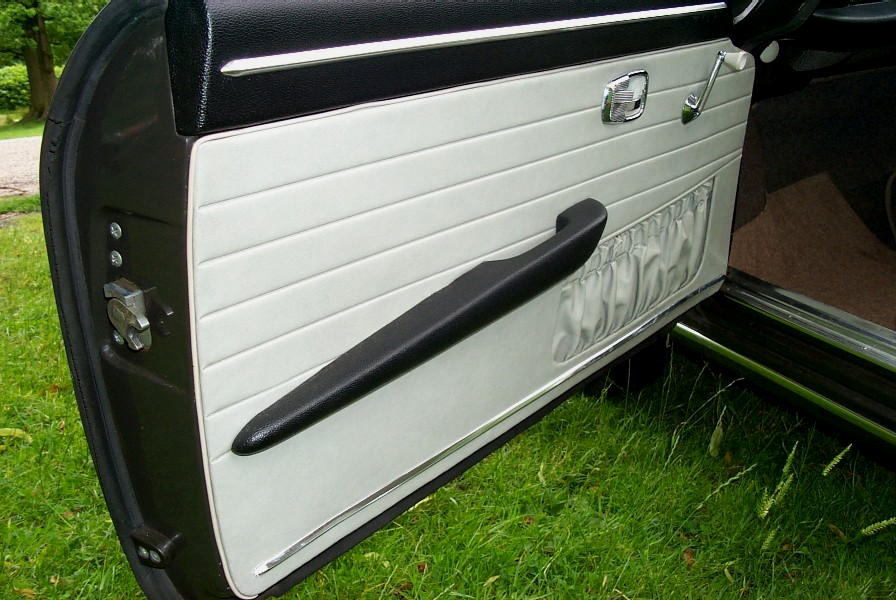

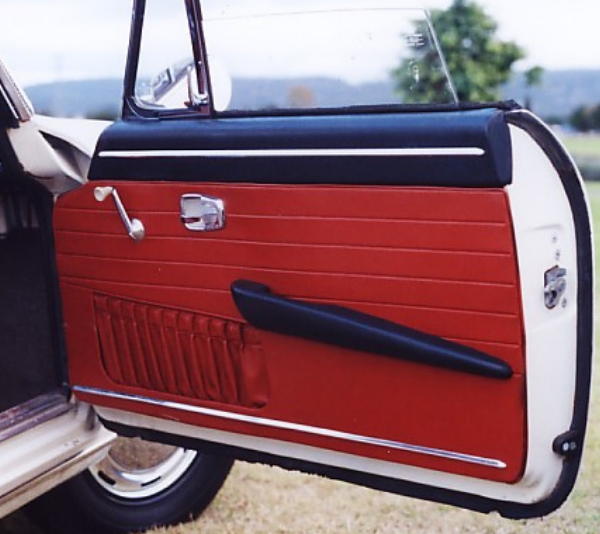

MONOTONE PANELS
BODY COLOR
UPPER COLOR
LOWER COLOR 1
LOWER COLOR 2
LOWER COLOR 3
STANDARD
OPTION 1
OPTION 2
Ruby Red

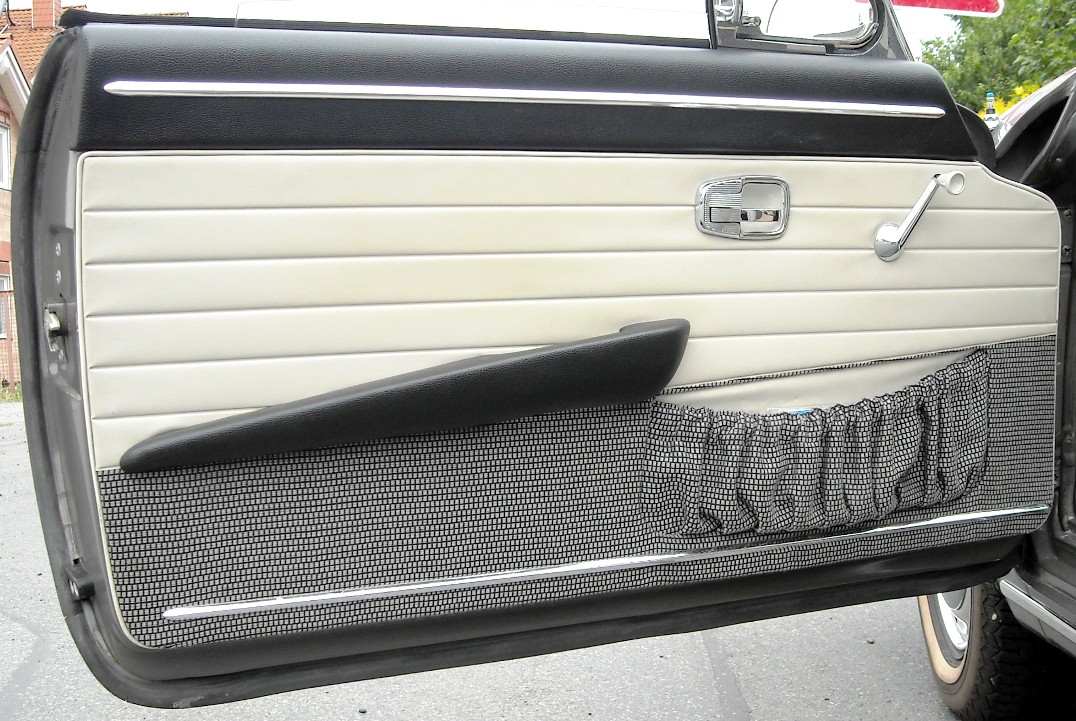

Silver-Beige
Derby Gray
Silver
---
Black
Silver-Beige
---
Pearl White
Silver-Beige
Black
Brick Red
Black
Brick Red
---
Sea Blue
Ice-Blue
Cerulean Blue
---
---
Black
Ice-Blue
---
Pacific Blue
Ice-Blue
Turquoise
---
---
Black
Ice-Blue
---
Manila Yellow
---
---
---
---
Black
---
---
Anthracite
Silver-Beige
Brick Red
Silver
---
Black
Brick Red
Silver-Beige
Emerald Green
Silver-Beige
Silver
---
---
Black
---
Silver-Beige
Terra Brown

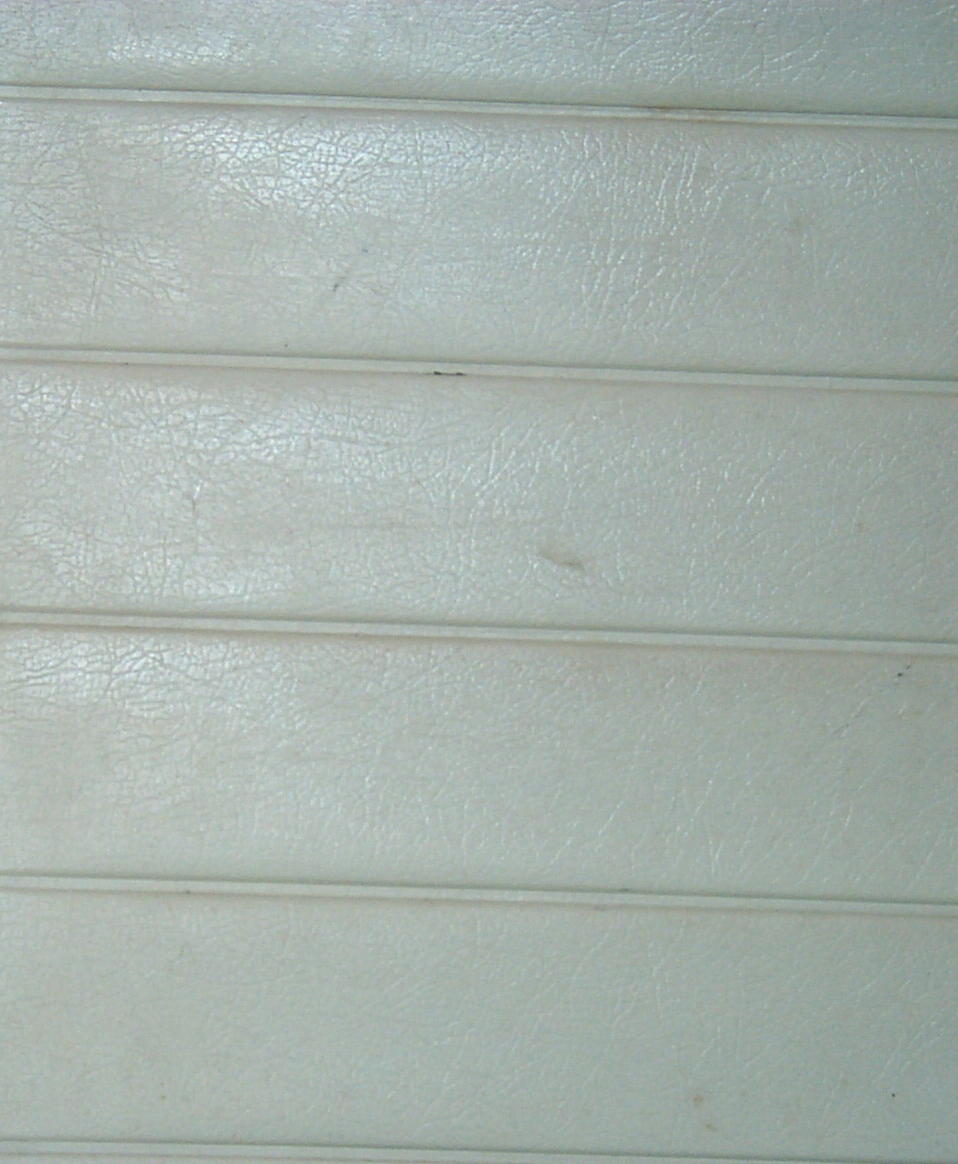

Light-Beige
Beige
---
---
Black
Light-Beige
---
Polar Blue
Ice-Blue
Turquoise
---
---
Black
Ice-Blue
---
Black
Silver-Beige
Brick Red
---
---
Black
Brick Red
---

1965
BODY COLOR
STANDARD
OPTION 1
OPTION 2
OPTION 3
OPTION 4
Cherry Red
Black
Parchment Gray
---
---
---
Henna Red
Black
Parchment Gray
---
---
---
Sea Blue
Parchment Gray
Black
---
---
---
Bermuda
Marine Blue
Black
---
---
---
Arcona White
Sienna Beige

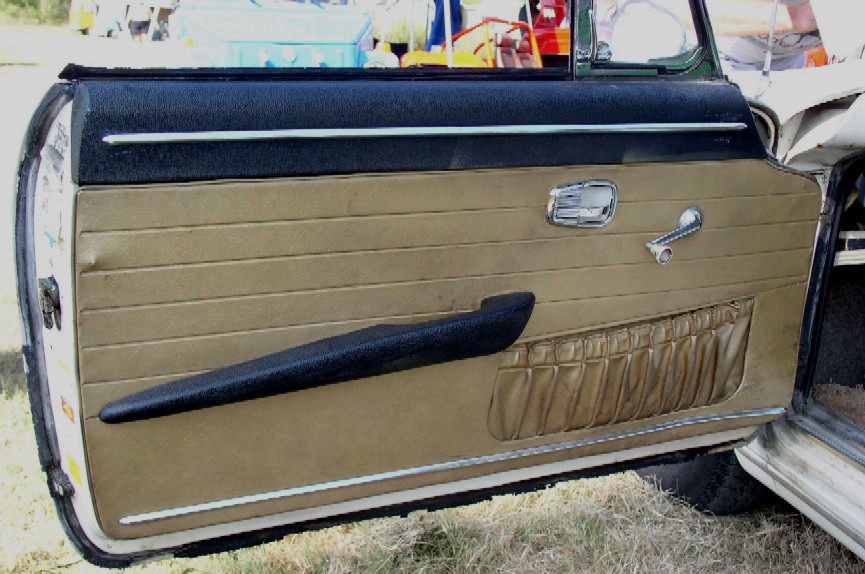

Nut Brown
Brick Red
Black
---
Fontana Gray
Black
Nut Brown
Brick Red
Marine Blue
---
Smoke Gray
Parchment Gray
Brick Red
Sienna Beige
---
---
Sea Sand
Nut Brown
Black
---
---
---
Manila Yellow
Black
Parchment Gray
---
---
---
Roulette Green
Sienna Beige
Parchment Gray
Nut Brown
Brick Red
Black

1966
BODY COLOR
STANDARD
OPTION 1
OPTION 2
OPTION 3
Cherry Red

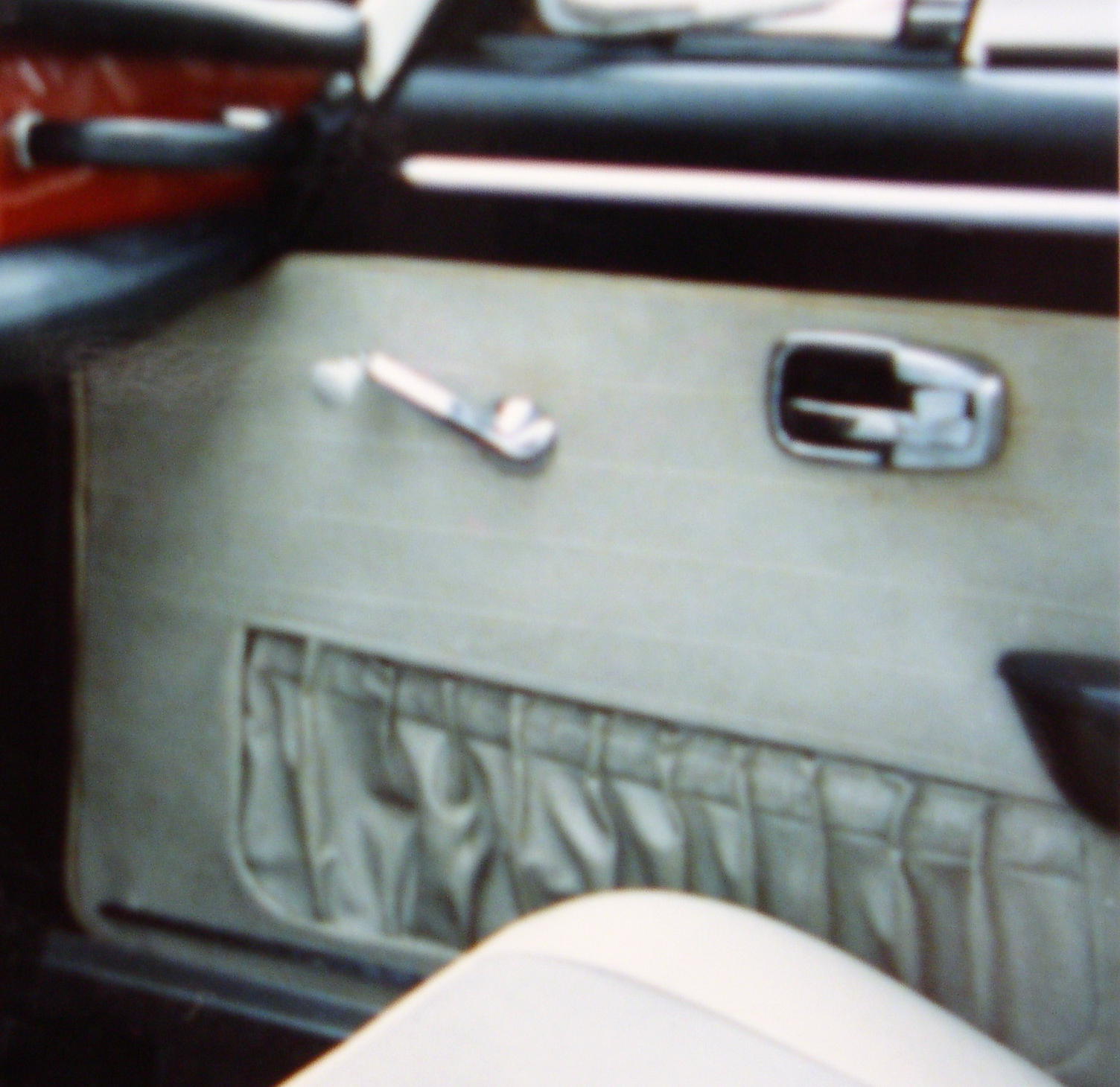

Platinum
Black
---
---
Henna Red
Platinum
Black

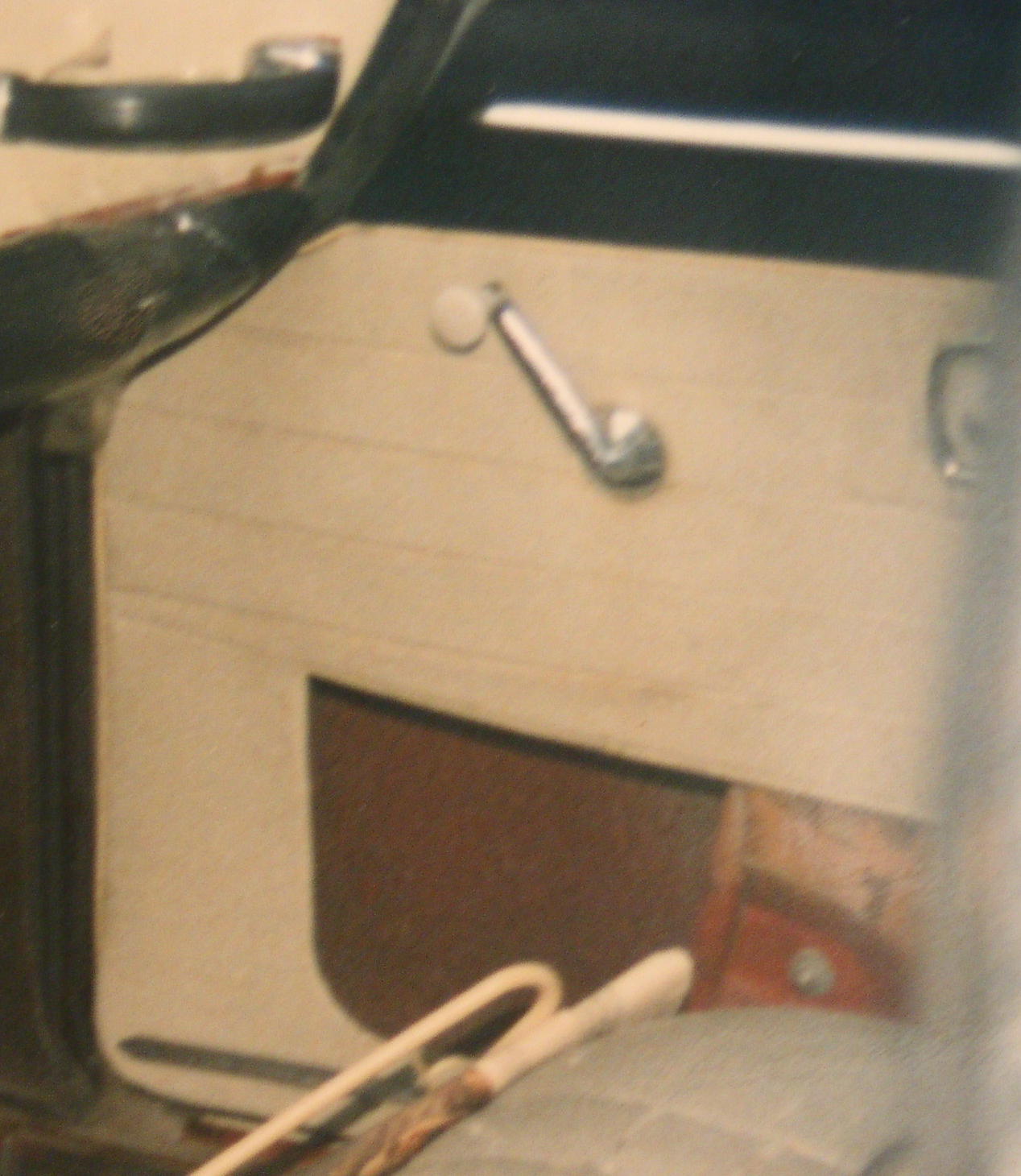

Balearic Beige
---
Sea Blue
Platinum
Black
---
---
Bermuda
Black

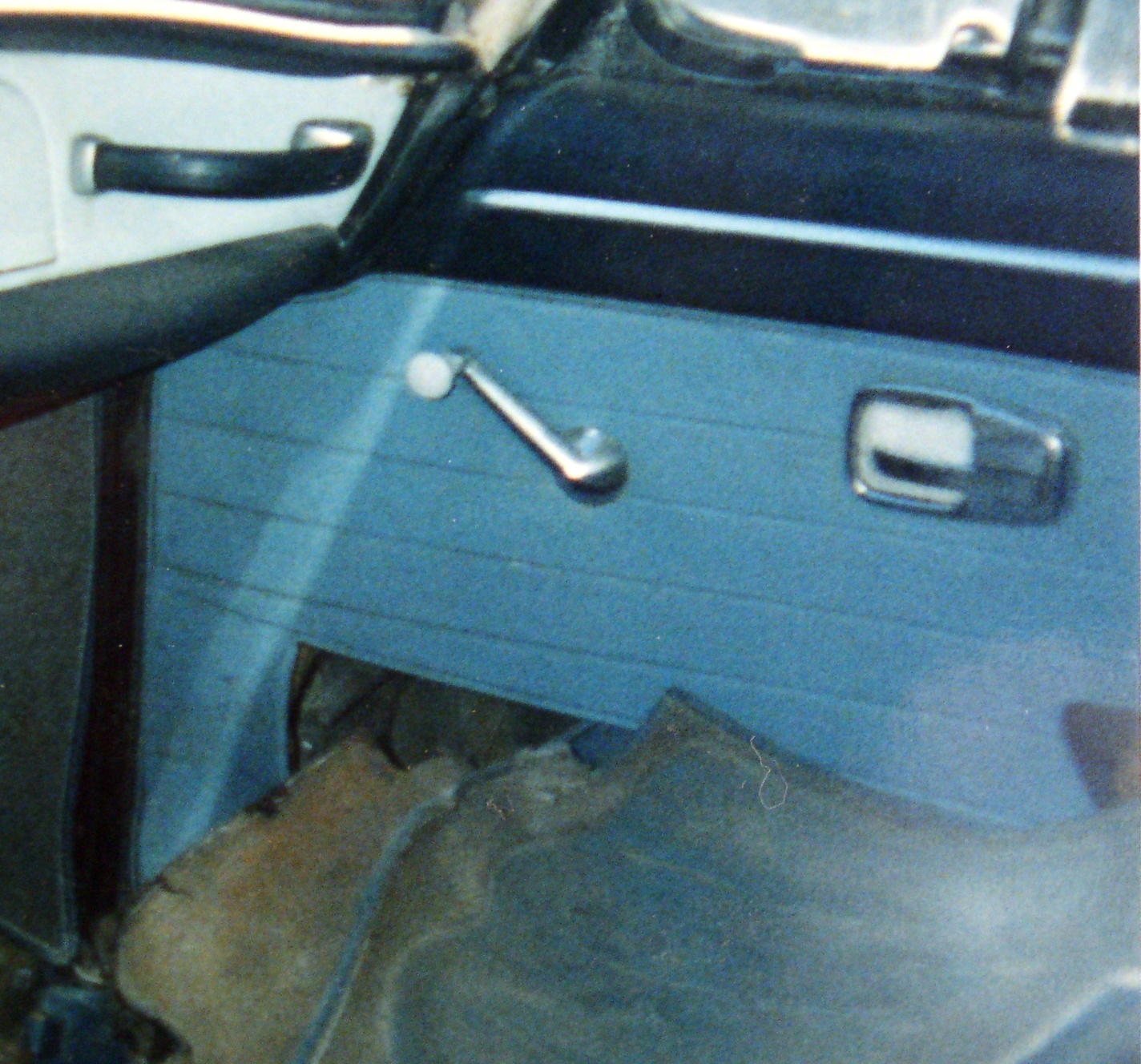

Azure
---
---
Arcona & Lotus White

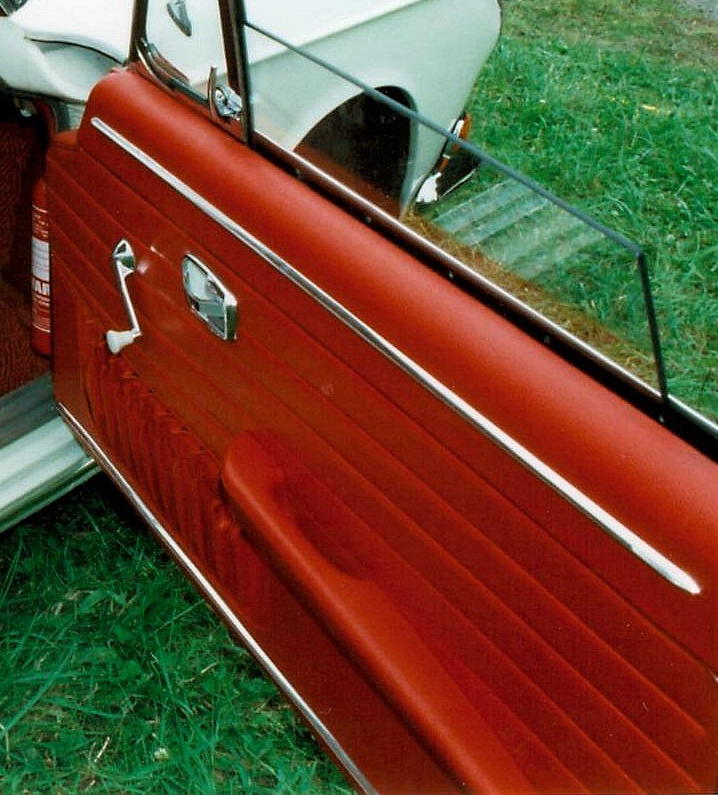

Pigalle
Black
Balearic Beige

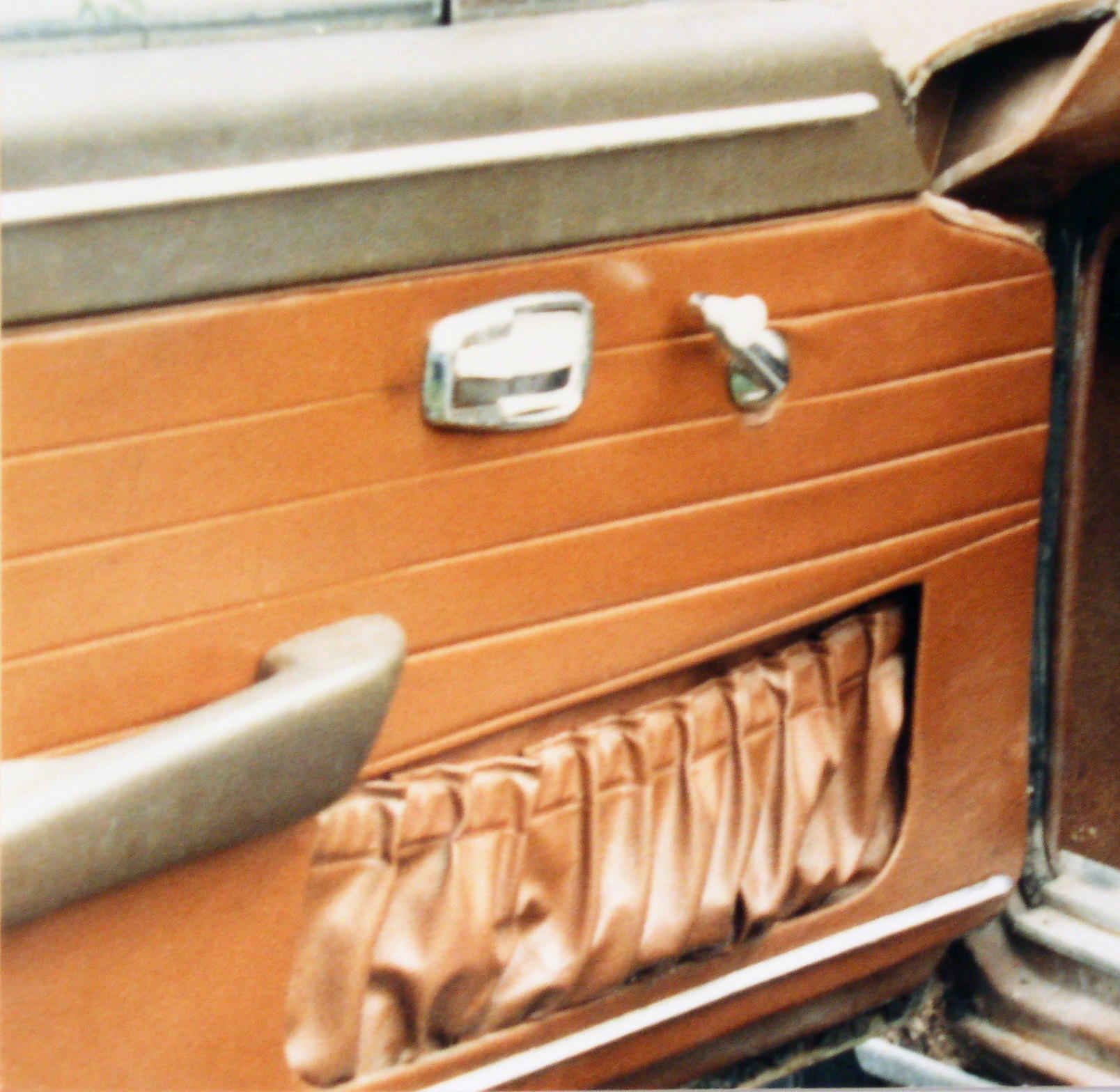

Teak
Sea Sand
Pigalle
Black
Balearic Beige
Teak
Manila Yellow
Black
---
---
---
Roulette Green
Platinum
Black
Balearic Beige
---
Black
Platinum
Pigalle
Black
---

1967
BODY COLOR
STANDARD
OPTION 1
OPTION 2
Cherry Red
Black
---
---
Neptune Blue
Black
---
---
Vulcan Gray

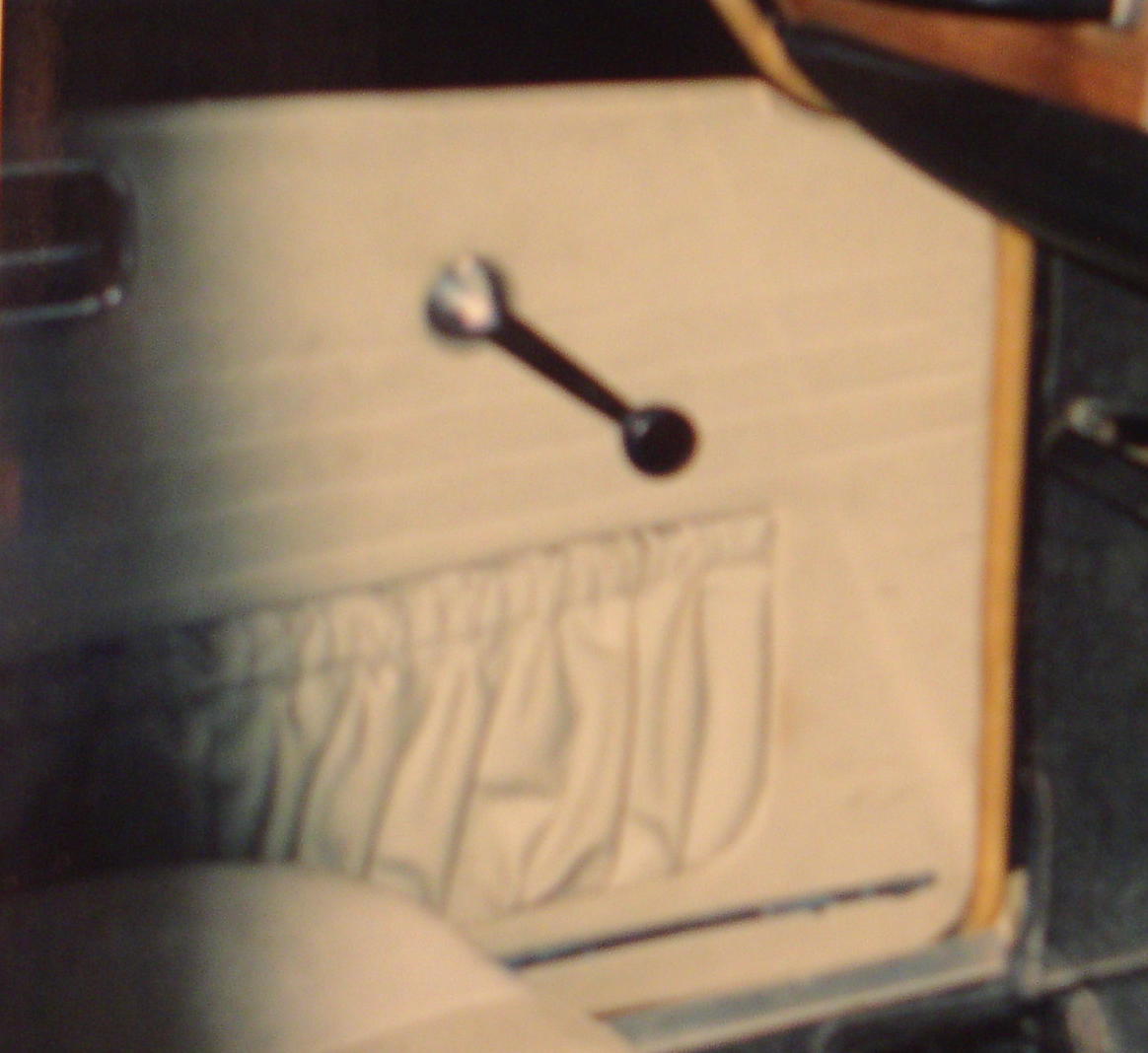

Light Sand

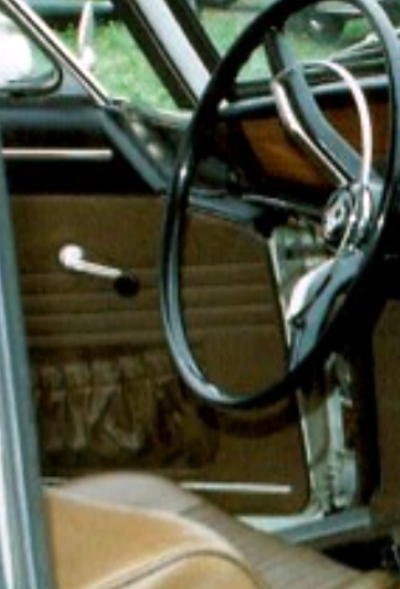

Khaki Brown
Black
Bermuda
Black
Water Blue
---
Lotus White

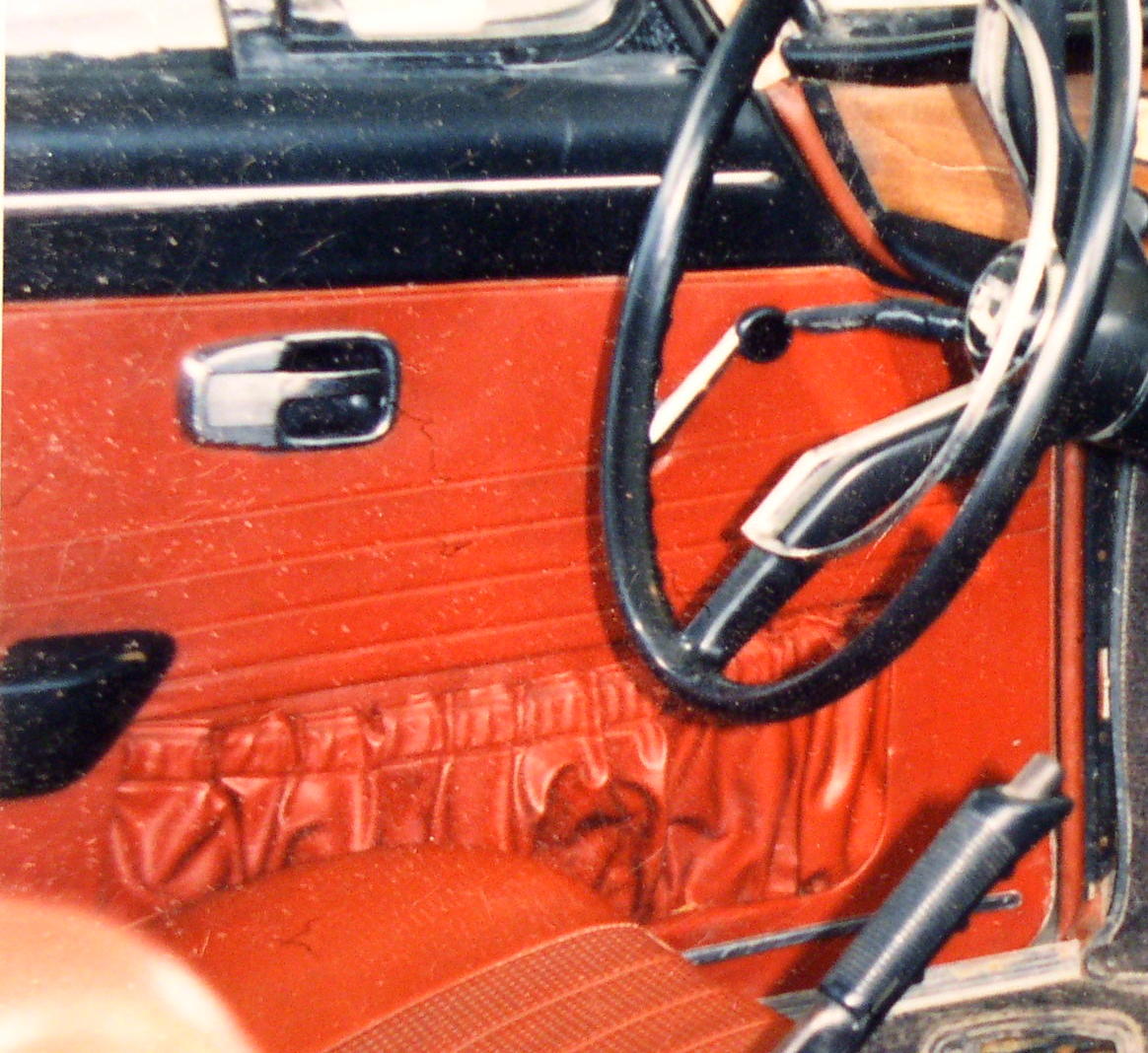

Indian Red
Black
Khaki Brown
Savanna Beige
Khaki Brown
Black
---
Castillian Yellow
Black
---
---
Roulette Green
Light Sand
Khaki Brown
Black
Black
Light Sand
Indian Red
Black
